American Standard Fail Safe Fail Secure Electric Strike SAC-S124
Fail Safe or Fail Secure Adjustable

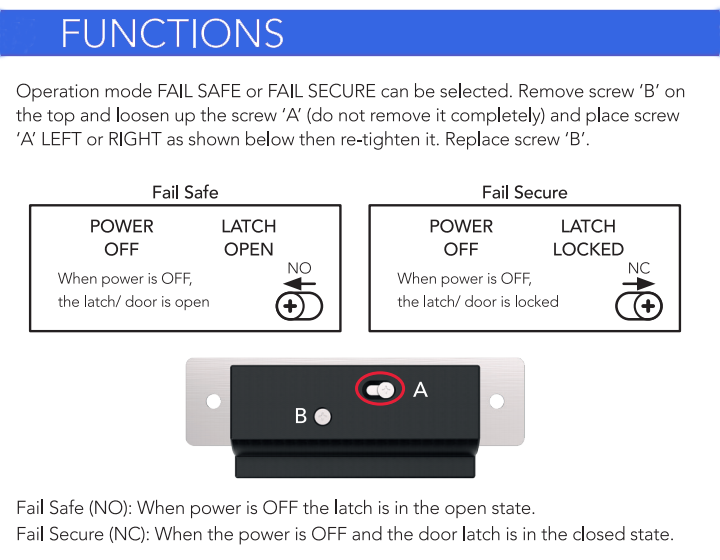

Operation mode FAIL SAFE or FAIL SECURE can be switched.Remove screw'B'onthe top and loosen up the screw'A'(do not remove it completely)and place screw'A'LEFT or RIGHT as shown below then re-tighten it.Replace screw'B
Operating Voltage:12VDC1A Max
Signal Output:3 wire,Max 1A 125AC;Wires Yellow-COM,Blue and White
Material:Stainless Steel,Zinc Alloy
Wiring:Red:+Supply
Black:-Supply
Blue:Short circuit with COM when the door is open
Yellow:COM
White:Short circuit wth COM when the door is closed
Unit Weight: 0.38Kg
1 pc/box, 50 pcs/ctn
Ctn size: 385*275*310 mm
Standard kraft box
Corrugated carton
